Model No.: XCLP-1500
Product Origin: China
Brand Name: Hua Ying
Other Price Terms: FOB, CIF
Payment Terms: FOB,CIF
Minimum Order: 1pc

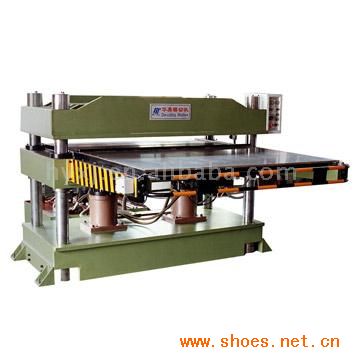

150T Hydraulic Four-Post Mould Cutting Machine
Detailed Product Description
Features:
1) Used to scissor up leather, rubber, plastic, cloth, sponge, nylon,
imitation leather and PVC boards
2) Applying four-post type dual-cylinder structure, which reaches
the high tonnage to cut, and saves the energy
3) Cutting force is lasting force, which is suitable for forming rubber
trade specially
4) The lubrication system is furnished with the fluid cooler, which
guarantees the machine to run well
5) Furnished with automatic-feeder equipment, which has improved
the service efficiency and security of the machine
6) Applying numerical control technology of "PLC + encoder", which
makes the tool mould set up conveniently and has high reliability
Specifications:
1) Max scissoring force: 1500kN
2) Stroke adjustment: 10-130mm
3) Distance between pressing board and table: 55-210mm
4) Scissoring speed: 0.06m/s
5) Table area: 1200 x 1200mm (can be customized)
6) Motor power: 7.5kW
