Model No.: XCLP-500
Product Origin: China
Brand Name: Hua Ying
Other Price Terms: FOB, CIF
Supply Ability: 10pcs/month
Minimum Order: 1pc

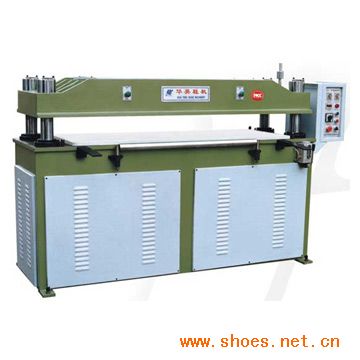

50T Hydraulic Four-Column Plane Cutting Machine
Detailed Product Description
Features:
1) Used to scissor up leather, rubber, plastic, cloth, sponge,
nylon, imitation leather, and PVC boards
2) Applying four-post type and crank synchronous balance
organizations, which guarantees the machine to receive
strength evenly in the blanking area
3) Applying dual cylinders to drive, which reaches the high-tonnage
cutting force and saves the energy
4) The lubrication system guarantees the precision of the machine
and lengthens service life
Main technical data:
1) Scissoring force: 500kN
2) Power: 5.5kW
3) Travel: 55-180mm
4) Table dimensions: 1600 x 800mm (customization available)
5) Overall dimensions: 2300 x 2100 x 1400mm
6) Weight: 3500kg
Outer packing:
Wooden case packaging
