Model No.: GSB-2C/25
Product Origin: China
Brand Name: Hua Ying
Other Price Terms: FOB, CIF
Supply Ability: 100pcs/month
Minimum Order: 1pc

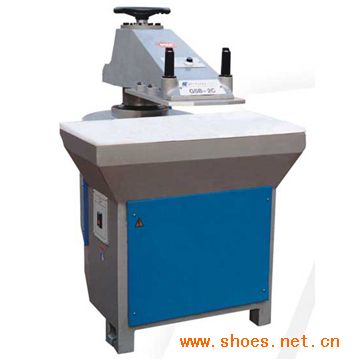

Hydraulic Swing Arm Cutting Machine
Detailed Product Description
Features:
1) Technology from England Combination Shoe Making Machine Company Ltd
2) No drawback, not parked, high security
3) Used to scissor up plastic boards, leather, fiber, cotton fiber, paper cartons
and other similar materials;
4) Equipped with lubricating system to lessen wear and prolong service life
5) Lower limit of stroke is controlled by a time-lapse circuit with high precision, so
it can make high-quality shoes
6) People can adjust height of sway arm from table by simple handle, convenient,
stable
Main technical data:
1) Max. scissoring force: 250kN
2) Sway arm width: 450 x 500mm
3) Stroke adjustment: 5-75mm
4) Scissor speed: 0.10m/s
5) Distance between upper table and lower table: 65-150mm
(without cutter washer board)
6) Upper and lower tables: 1000 x 500mm
7) Motor power: 1.5kW
Packing:
Wooden case
