Model No.: XCLL2-250
Product Origin: China
Brand Name: Hua Ying
Other Price Terms: FOB, CIF
Supply Ability: 20pcs/month
Minimum Order: 1pc

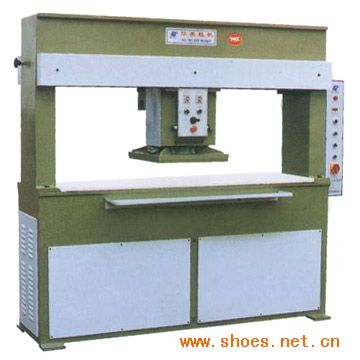

Hydraulic Travelling Head Cutting Machine
Detailed Product Description
Features:
1) It is used to cut one layer or multi-layer of leather, rubber, plastic,
hard papers, fiber, and chemical fiber
2) It is easy to adjust low voltage and set travel
3) Rising position of press board can be set at random to lessen
idle travel
4) Press board can be moved towards right or left, good operation
visibility
Main technical data:
1) Max scissoring force: 250kN
2) Sway arm width: 0-90mm
3) Scissoring speed: 0.10m/s
4) Distance between upper and lower table: 140mm
5) Press board (length x width): 500 x 500mm
6) Table area: 1760 x 500mm
7) Main motor power: 3kW
8) Auxiliary motor: 0.37kW
9) Weight: 1500kg
