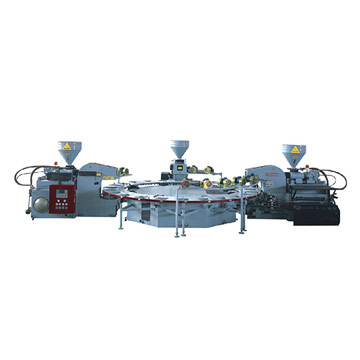

Sell Full-Auto Plastic-Rubber Sole Injection Molding Machine

Product Name: Full-Auto Plastic-Rubber Sole Injection Molding Machine
Model Number: OY-8324A
Place of Origin: China

Features:
1) Specially producing all kinds of single / double / three color soles of sports
shoes, sandals and ladies' and gentlemen's shoes
2) Specially for producing foaming and non-foam soles of thermoplastic
materials such as PVC, TPR or TPU
3) This machine is provided with liquid crystal monitor, PLC automatic control,
automatic testing and it's easy to operate
4) This machine has a flexible structure, it's very light in weight, and the design
of the frame is aimed for the convenience of the operator
5) This model can memorize the technical data of 300 different moulds,
avoiding the need of adjust the machine at each change of the mould
6) Adopts import linear potential electric meter to control plastic volume. The
injection accuracy is up to 0.1mm, ensuring its stable quality
7) Its hydraulic system is at high pressure and high flow, improving
the efficiency and the reliability of the machine
8) The oil pump of the electric motor is installed separately so to improve the
cooling and this can also increase the life time of the machine
9) This machine can produce single/double/three color products
10) The output capacity is about 180 pairs per hour
