Model No.: SL-560
Product Origin: China
Other Price Terms: FOB, C&F, CIF
Payment Terms: L/C, T/T

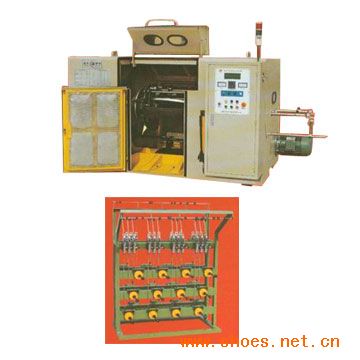

High-Speed Wire Twisting Machine
Detailed Product Description
Features:
1) High speed, PLC control, easy to operate, for changing the twist distance,
only need to replace one running wheel, for reversing, only need to turn
the tumbler by hand, which can increase the output by a big margin
2) The principal shaft adopts thin oil lubrication, maturally cooling,
automatic alarming for the oil level, and can reduce the temperature of
the machine and noise and prolong the service life of the machine under
without breakdown
3) The transmission adopts synchronous belt, with accurate twist distance
4) There is no lubrication points in the wiring system
5) Directly connect with the guide pulley of the principal shaft, this can
reduce scraping and skipping of the twisted line, and can also clean the
inside of the machine at the same time, which can avoid occurring inferior
lines and waist lines due to oiling pollution
6) Adopts magnetic powder clutch oto track and control wire-drawing tension,
which can make the wire-drawing tension even from the bottom of the drum
to the maximum excircle
7) The wire-drawing tension is controled by coding switches
8) Users can adjust the wire-drawing tension without stop
9) The corresponding technology documents can be drawn up according to coding
switch data so as to assure the quality of batch twisted lines
