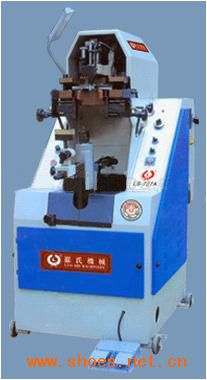

1) This machine is suitable for lasting the shoes with general and soft midsoles
and with the heels at height heels than 180mm
2) This machine is equipped with the lasting height micro switch which made the machine
easily adjusted and finds position accurately
3) We have full sixes of wipers and forming bands. Which fit and shapes of shoes ,
the forming bands are wrapped by chain and can accordingly produce a good forming
effect
4) This machine adopts gears , Gear racks and ratchets to quickly and precisely adjusts the auxiliary supporter
5) The second time and pressing of the last supporter works with the wiper heating
device to increase the lasting effect ,it is smoothing the lasting areas and upgrade
the quality of the shoes
6) Special design KF rising oil-way of shoe tree holder controls completely the tree
in the set positing in the course of upper-binding
Power: 1.5kW
Heating Power: 400W
Oil Pressure: 40kgf/cm?
Capacity: 2500pair/8hrs
Weight: 580kg
Dimension [LXWXH]: 1100 x 760 x 1420mm
Packing size [LXWXH]: 1270 x 820 x 1680mm
Hydraulic oil: 50 liters
