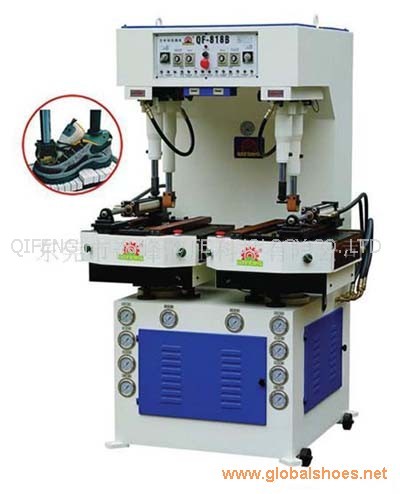

shoe machine/Walled Sole Attaching Machine

Place of Origin: GUANGDONG,CHINA
ProductModel:QF-818A/B/C
Brand Name:QIFENG
Payment Terms:T/T
Payment Terms:USD FOB
Minimum Order:1 SET
Delivery Time:ABOUT 30 DAYS SINCE THE PURCHASE ORDER
Supply Ability:50 SETS PER MONTH
Certificates:ISO 9001:2000
  • Country/Territory: ,China (Mainland)
  • Business Type: Manufacturer
  • No. of Total Employees: 51 - 100 People

Detailed Product Description
1 .Sole Attaching Machine is fully controlled by hydraulic system .It is suitable for outsole attaching of jogging shoes ,walled sports shoes and casual shoes .The operation of outsole pressing ,side pressing ,and front-rear pressing can be accomplished simultaneously or respectively .The heavy pressing force and firm attaching effect save much manpower .This automatic sole attaching mechanism makes an even and perfect pressing which helps the shoe industry upgrading .
2. There is a prepared oil-tank to supplement ol when cylinder rising which makes the rising faster and saves the operation time to increase benefit.
3 .The hydraulic automatic balancing system is adopted for the mechanism of pressing rods .The height of rods need no manual adjustment, which helps simplify operation.
4.The design of automatic bias angles setting for the mechanism of pressing rods makes shoes locating easy and even for boots.
5 .When the mechanism of front-rear pressing receding , a special circuit device is adopted to control the receding stroke, and the proper receding distance is according to locating different size of shoes.
6 . There is a pressure adjusting function for every operation which makes the pressing result perfect.
7.Automatic balancing rods and swing attaching mechanism
The height of attaching rods is controlled by hydraulic automatic balance system so that it is not necessary to adjust the attaching rods when the height of last is different also it could ensure the pressure of the two attaching rods almost the same and the attaching power on every point of the sole is the same .The attaching rods can swing simultaneously .It is convenient to put and take out o f the last.
8 .The design is better than the old design of the machine with fixed attached rods .Side attaching mechanism
9 .Side attaching mechanism the side attaching adopts whole hydraulic control. There are nine pincers of rubber foaming pressing objects to make a tight pressing according to the shape of shoes. Each foaming pressing object is controlled by an individual cylinder which pressure reaches to 250-300kgs.Two sets of these foaming pressing objects each in the front and there for options to ensure the best performance of side attaching.
10 .Special function for QF-818B
a . There are eighteen pressing pads on the bottom of the pressing mechanism .The pads are controlled by cylinders to up and down to firm the shape of different shoes.
b .The pressing pads can be changed with different height ones or be modified to meet different shapes of outsoles without using models so as to save much cost.
