Supply Cone Crusher20081105

Luoyang UTURN Machinary Co., Ltd.

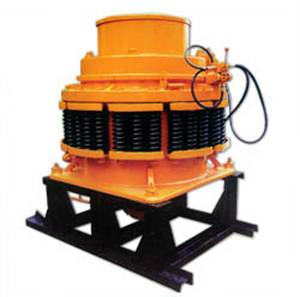

The cone crusher is suitable for crushing varies of mid-hard and above mid-hard ores and rocks. This crusher has the advantage of reliable construction. high prod uctivity, easy adjustment and less cost in operation. The spring release system of crusher acts an overload protection system that allows tramp to pass through the crushing chamber without damage to the crusher, use dry oil, water, two kinds of sealed formation. It make plaster stone and engine oil separated, assured reliable performance. The type of crushing chamber depends upon the size of feed and fineness of the crushed product. The standard type is applied to medium crushing, the medium type is applied to medium or fine crushing and the shorthead is applied to fine crushing.

Main technical Data:
Model Weight（T） Power（KW） Big end diameter of crushing cone（mm） Width of feed inlet
（mm） Maximum
feed size
（mm） Adjustment range of discharge opening
（mm） Productivity
（t/h）
PYB 600 9 75 φ600 75 65 12-25 20-40
PYD φ600 40 35 2-13 12-23
PYB 900 20 160 φ900 135 115 15-50 60-105
PYZ φ900 70 60 8-20 30-75
PYD φ900 50 40 3-13 18-60
PYC 1200 35 220 φ1200 235 200 30-50 120-200
PYB φ1200 170 145 20-50 110-230
PYZ φ1200 115 145 10-25 55-130
PYD φ1200 60 50 5-15 35-110
PYC 1750 8 500 φ1700 300 300 50-60 350-450
PYB φ1700 250 215 25-60 280-480
PYZ φ1700 215 185 10-30 115-320
PYD φ1700 100 85 5-15 75-230
PYB 2200 140 600 φ2200 350 300 30-60 590-1000
PYZ φ2200 275 230 10-30 200-580
PYD φ2200 130 100 5-15 125-350
