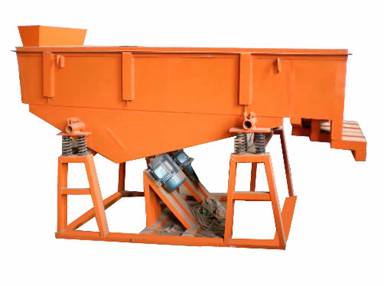

This series screen is driven by two vibrating motors. When two vibrating motor do synchronous and reversed rotation, the vibrating strength caused by eccentric block is offset at the direction which parallel to motor axis and piled up to resultant force at the direction which vertical to motor axis. So the moving track of this screen is a straight line. There is a inclination on screen surface to two motor axis. Under the gravitational force of vibrating force and material, the material which on the screen surface are throw up jumping forwards to do the liner motion in order to screen and grade the material. This series screen is applicable to below cohesionless dry power material:
Particle size—0.074-5mm
Moisture content--- <70%
Maximum feed inlet size--≤10mm
Main characteristics:
1. Good sealing, little powder dissipation;
2. Small consumption, low noise, long service life of screen mesh;
3. High screening precision, large capacity, simple construction;
4. Block possibility, automatic discharge, more applicable to flow production.
This series screen is widely used in chemical engineering industry, grain industry, plastic industy, medicine industry, food industy, metallurgical industry, glass industry, buliding material, chemical fertilizer, abrasive materials, etc.
Model No. Size of screen mesh Layer of screen mesh Mesh size
mm capacity Vibrating
frenquency Double
amplitude Motor power Vibrating
direction angle Dimension
LxWxH mm
DZS520 500×2000 1 2-200 0.05-5 960 6-7 2×0.4 45-60 2140×808×848
2DZS520 2 0.05-5 960 6-7 2×0.4 45-60 2199×808×878
3DZS520 3 0.03-5 1450 4-6 2×0.4 45 2256×808×938
DZS525 500×2500 1 0.06-8 960 5-7 2×0.4 45-60 2642×808×848
2DZS525 2 0.06-8 1450 4-6 2×0.4 45 2699×808×878
3DZS525 3 0.06-8 960 6-8 2×0.75 45-60 2750×808×938
DZS1020 1000×2000 1 0.12-20 960 6-8 2×0.75 45-60 2152×1320×900
2DZS1020 2 0.11-20 960 5-7 2×0.75 45-60 2219×1320×960
3DZS1020 3 0.10-2 960 5-7 2×0.75 45-60 2286×1320×1030
DZS1025 1000×2500 1 0.1-15 1450 5-7 2×0.4 45 2203×1320×900
2DZS1025 2 0.08-15 1450 5-7 2×0.4 45 2269×1320×960
3DZS1025 3 0.07-15 960 6-8 2×0.75 45-60 2336×1320×1030
DZS830 800×3000 1 0.1-20 960 6-8 2×0.75 45-60 3080×1098×1120
2DZS830 2 0.1-20 960 6-8 2×0.75 45-60 3140×1098×1180
3DZS830 3 0.1-20 960 6-8 2×1.5 45-60 3200×1098×1240
DZS1030 1000×3000 1 0.1-20 960 6-8 2×0.75 45-60 3152×1340×1120
2DZS1030 2 0.1-20 960 6-8 2×1.5 45-60 3219×1340×1120
3DZS1030 3 0.1-20 960 6-8 2×1.5 45-60 3286×1340×1120
DZS1224 1200×2400 1 0.1-23 960 6-8 2×0.75 45-60 2480×1520×1100
2DZS1224 2 0.1-23 960 6-8 2×0.75 45-60 2540×1520×1160
3DZS1224 3 0.1-23 960 6-8 2×1.5 45-60 2600×1520×1220
