Detailed Selling Leads Description
Luoyang UTURN Machinary Co., Ltd.

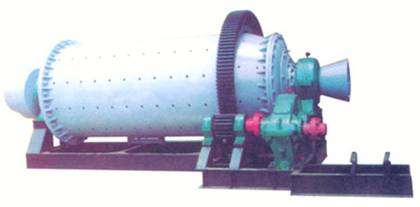

This machine is used for the ore dressing of non-ferrous and ferrous metals, and is used in large scale cement factory, refractory factory, smelting plant, and lime burning plant. Its purpose is to mill the granule into fine powder, which is good to extract the badly needed mineral matter.
Main technical data :
Model/Specification Rotate speed of bucket（r/min） Weight of ball（T） Feed size（mm） Dicharge
size（mm） Productivity（t/h） Power（KW） Weight （T）
φ800×1800 38 1.5 0-15 0.075-0.8 0.3-0.8 Y11-4 2.1
φ900×2100 38 2.0 0-15 0.075-0.8 0.5-1.3 Y15-4 3.2
φ1200×2800 35 4.8 0-20 0.075-0.8 1.2-3.7 Y30-6 11.5
φ1500×3500 28 4.0 0-25 0.075-0.8 3.3-8.8 Y55-75-6 16.5
φ1830×3500 25 13 0-25 0.075-0.8 4-8 Y150-6 30
φ2100×2700 24 15 0-25 0.075-0.8 3.5-25 Y150-8 33
φ2100×3500 24 20 0-25 0.075-0.8 4.5-33 Y180-8 37
φ2200×7000 21 24 0-25 0.075-0.8 8-36 Y380-8 50
