Supply PCB hammer crusher20081105

Luoyang UTURN Machinary Co., Ltd.

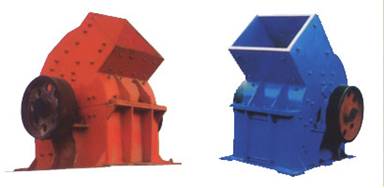

PCB series crusher is used for breaking medium degree of hardness materials, such as brittle ore, rock, coal limestone, slag, etc. in chemicals, cement, building materials and electricity industries.
The product owns simple structure and is convenient to operate and maintain.
Main technical data:
Model No. Rotor
Diameter
mm Rotor
Length
mm Rotor speed
r/min Feed inlet size
mm Feed size
mm Discharge size
mm Capacity
t/h Motor model No. Motor
Power
KW Motor speed
r/min Weight
kg Dimension
LxWxH
mm
PCB-0604 600 400 1000 450×295 ≤100 ≤15 12-15 Y160L-4 15 1460 1570 1055×1020×1122
PCB-0806 800 600 980 570×350 ≤120 ≤15 18-25 Y280M-6 55 980 2528 1495×2660×1020
PCB-0808 800 800 980 570×400 ≤200 ≤15 35-45 Y315S-6 75 990 4340 2876×1864×1340
PCB-1008 1000 800 990 800×550 ≤200 ≤20 30-60 Y315L1-6 110 990 6650 3504×2210×1517
PCB-1010 1000 1000 990 800×600 ≤200 ≤20 40-80 Y3152-6 132 990 8500 3514×2430×1700
PCB-1212 1250 1250 740 IOOO×750 ≤200 ≤20 60-100 Y355L1-8 185 740 19000 4508×3162×2250
PCB-1414 1400 1400 750 1200×850 ≤250 ≤20 100-170 Y400-8 280 750 26300 5308×3440×2475
PCB-1616 1600 1600 600 1400×1000 ≤350 ≤20 170-250 Y500-10 450 600 34000 5800×3780×2700
