Supply PF impact crusher20081105

Luoyang UTURN Machinary Co., Ltd.
PF impact crusher is applicable for various coarse, medium and fine materials (such as granite, limestone and concrete, etc.) with grain size not exceeding 500mm and compression strength not higher than 360MPa. It is characterized by great reduction ratio, high reduction efficiency and convenient maintenance, etc. The product is in the shape of a cube.
It is the ideal machining equipment for aggregate for high-class highway pavement and construction of hydropower facilities. With excellent capacity and performance, the impact crusher is widely used in machining of reduced stone for highway construction, hydraulic engineering and architecture, etc.
Performance features:

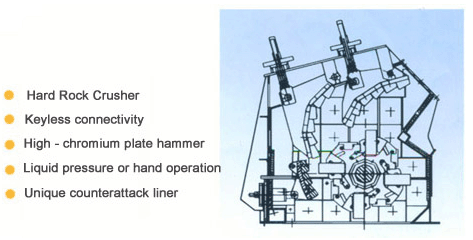

The impact crusher is with unique structure, keyless connection, high-chromium plating hammer and special impact liner plate; it is capable of highly efficient hard rock crushing while saving energy; the product is in the shape of a cube, the discharge grain size is adjustable to simplify the crushing circuit.
Working principle:
The impact crusher uses plate hammer on the rapidly rotating rotor to generate high-speed impact to crush the materials in the crushing cavity, and casts the crushed materials along tangential direction to impact plate at the other end of the crushing cavity. The materials are crushed again, and then, they return to the plate hammer to undergo the process above repeatedly.
The materials are bumping with each other when being sent between the plate hammer and the impact plate. The materials become cracked, loose and then comminuted by knocking by the plate hammer, impact with impact plate and bump between materials. The materials with grain size smaller than the gap between impact plate and plate hammer will be discharged.
Main technical data of PF impact crusher:
Model             Specification（mm） Feed inlet size（mm） Maximum
feed size（mm） Productivity（t/h） Power（KW） Weight（excluding motorT）
PF-0607 φ644X740 320X770 100 10-20 30 4
PF-0807 φ850X700 400X730 300 15-30 30-45 8.13
PF-H-10071 φ1000X700 400X730 300 30-50 37-55 9.5
PF-A-10101 φ1000X1050 400X1080 350 50-80 55-75 12.127
PF-B-12101 φ1250X1050 400X1080 350 70-120 110-132 14
PF-B-12141 φ1250X1400 400X1430 350 130-180 132-160 18.579
PF-1013 φ1000X1300 650X1350 400 80-120 90-110 12
PF-1315 φ1320X1500 860X1520 500 160-250 180-260 19
PF-1320 φ1320X2000 860X2030 500 300-350 300-375 24
