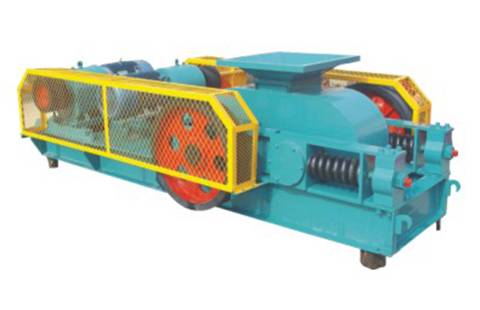

Supply PG Roll Crusher20081105

Luoyang UTURN Machinary Co., Ltd.
PG Roll crusher features simple construction, reliable work and low cost. It is widely used in medium and small-sized factories and mine for intermediate and fine crushing to fragile and tough middle hardness or soft ore such as coal and coke.
Our main product of roll crusher are double roll crusher 2PG and four roll crusher 4PG .
Main technical data of PG Roll Crusher:
Type SR
No. Model/Specification Technical performance Motor Power（KW） Dimension
（L X W X H）（mm） Weight
（T）
Feed size（mm） Discharge
size（mm） Productivity（m3/h）
Double
Roll
Crusher 1 2PGφ310X600 ＜16 2-5 1.5-7 2X5.5 1750X2260X500 3.6
2 2PGφ400X250 ＜40 2-8 Y5.5-6 1.3
3 2PGφ400X250 ＜70 1-20 Y15-6 3.9
4 2PGφ610X400 ＜36 2-9 3-9 2X11 1785X2365X1415 3.8
5 2PGφ750X500 ＜40 2-10 7-12 2X15 2720X2700X1400 10.25
6 2PGφ750X700 ＜40 5-10 15-25 2X22 3422X2800X1705 11.7
7 2PGφ750X1000 ＜40 2-10 6-30 2X30 4150X2800X1750 12.5
8 2PGφ900X500 ＜40 2-10 9-30 2X22 2750X1790X2065 14
9 2PGφ900X900 ＜40 2-10 11-45 2X30 2750X2180X2065 16.8
10 2PGφ900X1200 ＜40 3-10 15-60 2X55 2750X2480X2065 20.8
11 2PGφ1000X800 25-90 3-40 12-150 2X45 2940X2080X2065 22.6
12 2PGφ1200X1000 ＜40 3-12 10-50 2X37 3690X3430X2700 46.82
13 2PGφ1200X1200 ＜40 3-12 18-68 2X75 3690X3630X2700 48.6
Four
Roll
Crusher 1 4PG750X500 30-60 2-10 3-10 18.5+17/11 2760X3585X2650 20.8
2 4PG750X600 30-60 2-10 3.6-12 18.5+17/11 3390X2740X2650 21.8
3 4PG900X700 40-100 2-10 10-60 30+12/24 3150X4175X3147 28.7
4 4PG900X900 40-100 2-10 20-70 45+45/37 3150X4375X3147 31.4
5 4PG1200X1000 50-120 3-10 30-90 75+55/40 9610X5600X4240 69
