Luoyang UTURN Machinary Co., Ltd.

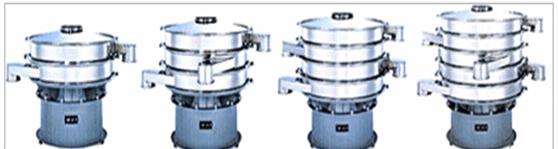

XH series rotatory vibrating screen is a kind of high screening precision and fine powder sieving enquipment. It has low noise, high efficiency.
The time for changing the mesh only needs 3-5 minutes. Its complete close structure is used in screening and filtering of all kinds of particle and powder material.
Main characteristics:
1. High efficiency, ingenious design and durable, can screening all kinds of particle , powder material and mucus.
2. Easy to change the mesh, simple operation, convenient washing.
3. There is no blocking in mesh, no powder flying. It can screening to 500 mesh.
4. Impurity and coarse material are automatically discharged. Can do the flow production.
5. Special mesh frame design, long life service of screen mesh, only need 3-5 minutes to change the mesh.
6. Small volum, do not occupy the space and moved easily.
7. The highest can arrive 5 layers, we recommened 3 layers.
Applicable industry:
1. Chemical indusry:resin,coating,industrial medicine, cosmetics, oil paint, chinese medicine powder and so on.
2. Food industry:suger powder, amylum,salt,rice flour, milk powder, soybean milk,egg powder,soy sauce,juice and so on.
3. Metal ore industry: Metal, aluminum powder, lead powder,copper powder,ore, alloy powder, electrode powder, manganese dioxide, electrolytic copper powder, electro-magnetic material, grinding material, refractory material, kaolin,lime, alumina, heavy calcium carbonate, quartz sand and so on.
4. Pollution treatment:waster oil, waster water, dyeing and finishing wastewater, promoter, activated carbon and so on.
Shape installation size:
Model No. A B C D E F G H I J M Overall height
One layer Two layer Three layer
XH-400 Φ450 Φ100 Φ460 300 400 500 600 720 80 100 320 600 700 800
XH-600 Φ650 Φ150 Φ500 320 420 520 620 740 100 100 420 640 740 840
XH-800 Φ800 Φ200 Φ680 420 540 670 800 950 100 150 500 790 920 1050
XH-1000 Φ950 Φ230 Φ800 460 590 720 850 1000 100 150 610 840 970 1100
XH-1200 Φ1160 Φ250 Φ960 460 610 740 870 1020 120 160 710 880 1010 1140
XH-1500 Φ1500 Φ250 Φ1220 560 730 860 990 1140 150 200 910 1030 1180 1330
XH-1800 Φ1840 Φ350 Φ1900 1020 1230 1440 1650 1880 180 300 1150 1640 1850 2060
XH-2000 Φ2040 Φ350 Φ2100 1020 1230 1440 1650 1880 180 300 1250 1640 1850 2060
Tehcnical Data:
Model No. Nominal diameter
mm Diamter of screen surface
mm Effective area of screen surface
m² Maximum feed inlet size
mm Specification of screen surface
(mesh/inch) Numver of layer Vibrating frequency
(Rpm) Power
XH-400 400 340 0.09 <10 2-325 1-3 1500 0.18
XH-600 600 530 0.22 <10 1500 0.25
XH-800 800 720 0.4 <20 1500 0.55
XH-1000 1000 900 0.63 <20 1500 0.75
XH-1200 1200 1100 0.95 <20 1500 1.1
XH-1500 1500 1400 1.5 <20 1500 2.2
XH-1800 1800 1710 2.3 <30 1500 3
XH-2000 2000 1910 2.86 <30 1500 4
