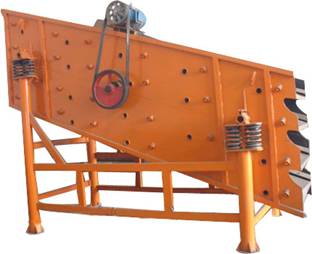

This series of product is vibrated by the circling motion and the amplitude strength can be adjusted.It has a long screening production line and several layers. The vibrating equipment is used in separating the stuff. It is composed of main frame, screen web, electric motor, eccentric bock, rub spring, coupler and so on. We will offer you suitable type according to your requirements. Simple construction and dependable eccentric type system, high screening capacity, high durability, no transmission of screen panels ready changing of screen plates rigid and vibrating resistance screen body. For grading the big materials, medium, small granular materials . It is widely used in the Mining Industry, Coal Industry, smelting, building material, refractory Industry, light industry, chemical engineering industry, grain industry, etc, steady and reliable, small consumption, low noise, long service life, etc.
YZ series
Model No. No.of screen layer Area of
Screen
Mesh
（m³） Size of screen hole
（mm） Max. feed inlet size
(mm) capacity
（m/h） Vibrating
Frequency（r/min） Double Amplitude
（mm） Motor Power
（Kw） Dimension
(LXWXH) Weight
(exclude motor)
Kg Installation
Inclination
（°） Dimension of screen mesh
（mm）
YZ918 1 1.4 3-30 100 3-25 800-970 8 5.5 1930X1700X1600 680 20 900X1800
2YZ924 2 1.9 3-30 100 4-38 800-970 8 5.5 2490X1700X1800 1400 20 900X2400
YZ1020 1 2.0 3-30 100 5.12-37 900 8 5.5 2160X1770X1075 1400 20 980X2050
YZ1230 1 3.2 3-50 200 7.5-8 800-970 8 5.5 3073X2030X1611 1750 20 1200X3000
2YZ1230 2 3.2 3-50 200 7.5-78 800-970 8 5.5 3122X2050X2247 2345 20 1200X3000
3YZ1230 3 3.6 5-50 200 15-86.3 940 8 7.5 3200X2145X2300 2700 20 1200X3050
3YZ1236 3 3.9 3-50 200 9-93 800-970 8 11 3900X2300X2700 4000 20 1200X3600
2YZ1542 2 5.7 5-50 400 50-208 800-970 8 15 4400X2610X2857 5336 20 1500X4200
3YZ1548 3 6.4 5-50 400 22.5-162 800-970 8 15 5650X2528X3400 5800 15 11500X4800
YZ1848 1 8.64 5-100 400 22-206 755 11 15 4802X3009X2860 6089 20 1830X4880
2YZ1848 2 8.64 5-100 400 25-206 750 11 15 4802X3009X2860 6189 20 1830X4880
YK series
Model No Area of
Screen Mesh（m³） Size of screen hole
（mm） Max. feed inlet size
(mm) capacity
（t/h） Vibrating frequency
（r/min） Motor Power
（Kw） Installation
Inclination （°）
YK1236 4.3 3-50 200 25-150 970 7.5 20
YK1245 5.4 3-50 200 35-200 970 11 20
YK1536 5.4 5-50 200 35-200 970 11 20
YK1545 6.75 5-50 200 40-250 970 11 20
YK1548 7.2 5-100 200 50-275 970 18.5 20
YK1848 8.8 5-100 300 56-300 970 22 20
YK1854 9.72 5-100 300 60-350 970 22 20
YK2154 11.3 5-100 350 70-400 970 22 20
YK2160 12.6 5-100 350 70-500 970 30 20
