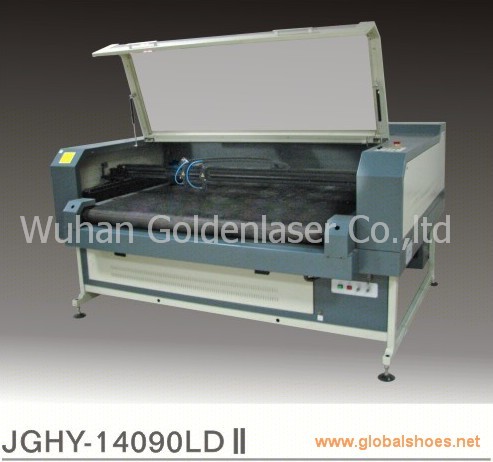

Double head cutting and hollowing machine for shoes
Product Feature
1,It comes with two sets of high power laser sources.
2,It not only can work with single head in the whole area but also process with two heads at the same time.
3,With a structure of mobile electric constroller, the distance between two heads can be adjusted at will. By this way, it saves material greatly.
4,Pedrail working table and porper woking area for shoes makes it a professional machine in shoes processing industry.
Technical Parameter
Laser type CO2 Hermetic and detached laser tube
Laser power 80W*2
Cutting area 1400mm*900mm
no-load max speed 0-18000mm/min
Repeating location 0.1mm
Moving system Offline stepping control system
Cooling system water cooling and protection system
Working table Pedrail working table
Power supply AC220V
Format support AI,BMP,PLT,DXF,DST etc
Standard collocation 550W up and down exhaust fan, mini air compressor
Select collocation Single laser head,CO2 Hermetic and detached laser tube(65W/100W),servo system,high-presure blower solenoid valve and controlling board,constant temperature water-chiller,auto- feeder machine.
