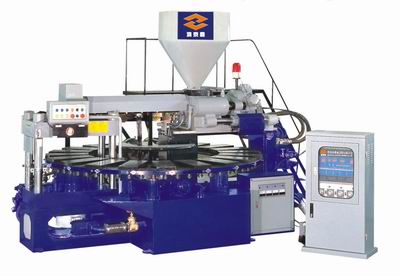

1.This machine is suitable for all kinds of thermoplastic raw materials,foaming or non-foaming,such as TPR,PVC etc.for soles injecting.
2.It adopts a full-automatic compulogic system,without need of professional operator,which can save labor force and time.
3.The material axle is driven by a low noise,low ratating speed &high torque hydraulic motor,with great powerful stepless transmission pressure.
4.The machine's output is about 200 pairs/hour
5.It adopts a screw of big diameter,great injecting volume of raw materials,high output,controlled by computer.It has 20 different voulumes for injecting.
MODEL UNIT HM-108
Injecting screw diameter mm 70
Injecting capacity cm3/shot 600-1100
Electric heat capacity kw 7
Temperature control point 4
Screw speed r.p.m 0-200
Torque of spiral oil pressure kg-m 230
Injection stroke mm 210
Power of oil-pump Hp 30
Mold clamping force kg/cm2 80
Work station 20
Max.dimension of mold mm 600*220*140
Machine dimension(L*W*H) mm 3800*2300*2300
Installation dimension(L*W*H) mm 3650*2300*1650
N.W. kg 4500
G.W. kg 5500
