1.This machine is suitable for all kinds of thermoplastic raw materials,foaming or non-foaming,such as PVC,TPR etc. for soles injecting.
2. The close mold with two steps control make no damage to the mold,materials are injected by two steps pressures.
3.The rotary driving uses oil pressure motor,and it's free controlled noiseless for material supplying speed. All material supplying capacity is controlled by computer,it is always with standard material supplying capacity.
4.This machine can produce one /two/three color products.
5.The machine's output is 150 pair/hour.

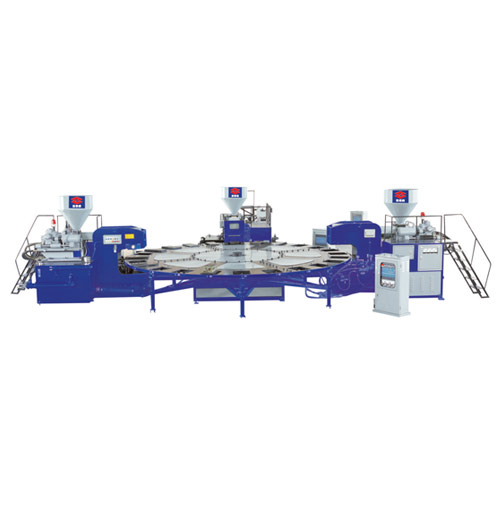

MODEL UNIT HM-108-3C
Injecting screw diameter mm 65*2 set 7*1 set
Injecting capacity cm3/shot 650*2 900*2
Electric heat capacity kw 7*2 8*1
Temperature control point 4
Screw speed r.p.m 0-200
Motor of spiral oil pressure kg-m 230
Injection stroke mm 210
Power of oil-pump Hp 30*3 set
Clamping force Kg/ cm2 80
Work station 24
Max.dimension of mold mm 720*320*190
Machine dimension(L*W*H) mm 7600*10600*2360
Installation dimension(L*W*H) mm 2500*2500*1100
3500*2280*2050*3
N.W. kg 13000,3600*3
G.W. kg 14300,4400*3
