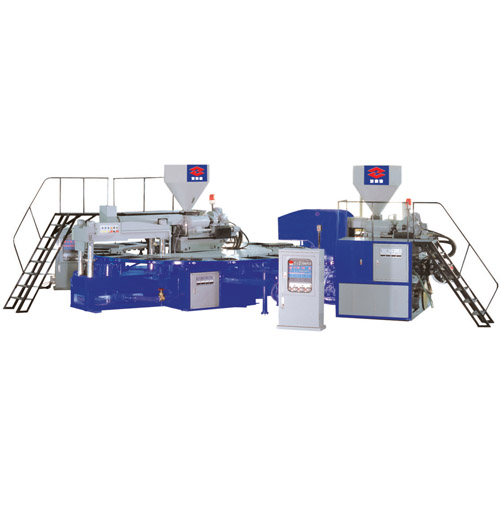

1.This machine is suitable for all kinds of thermoplastic raw materials,foaming or non-foaming,such as TPR,PVC etc.for soles injecting.
2.The entire machine oil system controlled independently, has fast speed,accurate pressure,excellent quality.
3.With strong close mold base and lock mold power,which makes perfect quality.
4.The close mold with two steps control make no damage to the mold,materials are injected by two stepspressures.
5.The machine's output is about 180pair/hour.
MODEL UNIT HM-108-2C
Injecting screw diameter mm 65/1.70*1
Injecting capacity cm3/shot 600*1
Electric heat capacity kw 7*1 8*1
Temperature control point 4
Screw speed r.p.m 0-200
Motor of spiral oil pressure kg-m 230
Injection stroke mm 210
Power of oil-pump Hp 30*2 set
Clamping force Kg/cm2 50
Work station 20
Max.dimension of mold mm 720*320*190
Machine dimension(L*W*H) mm 3800*4000*2300
Installation dimension(L*W*H) mm 3950*2280*1900
3950*2280*2050
N.W. kg 7200,3600
G.W. kg 8500,4400
