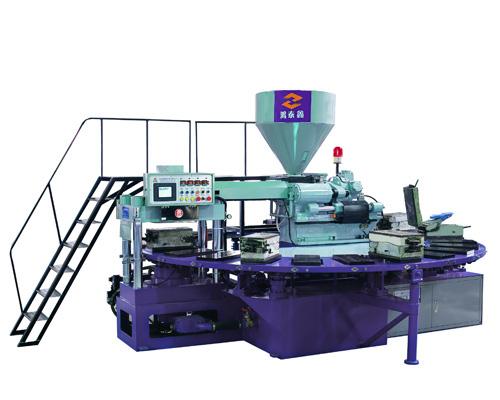

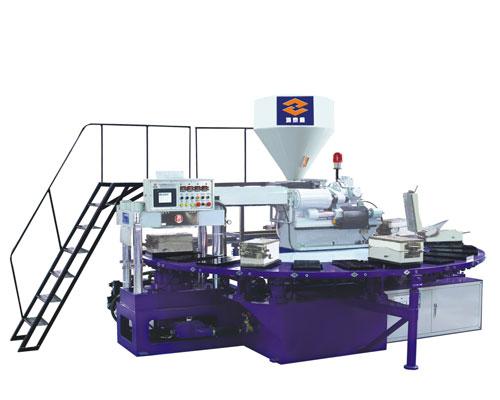

1.This machine is suitable for all kinds of thermoplastic raw materials,foaming or non-foaming,Such as TR,TPU,PVC etc. for soles.
2.Enlarge the mold face,can inject one pair/mold,increasing the productivity.
3.The barrel temperature controlled with 4-stage P.I.D, ensuring constant temperature to keep the high quality.
4. mould-cooling system adopts water cooling and air cooling system to raise the quality and increase the productivity.
MODEL UNIT HM-158X-24
Injecting screw diameter mm 65
Injecting capacity cm3/shot 600-1100
Electric heat capacity kw 7
Temperature control point 4
Screw speed r.p.m 0-200
Torque of spiral oil pressure kg-m 230
Injection stroke mm 210
Power of oil-pump Hp 30
Clamping force kg/cm2 80
Work station 24
Max.dimension of mold mm 600*220*140
Machine dimension(L*W*H) mm 3800*2300*2300
Installation dimension(L*W*H) mm 3650*2300*1650
N.W. kg 5000
G.W. kg 6000
