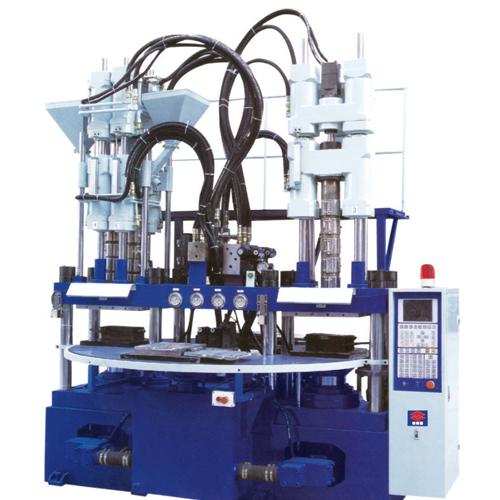

MODEL UNIT HM-168-4P HM-168-6P
Screw diameter mm 50/40/40 50/40/40
Injecting capacity g 200/150/150 200/150/150
Injecting preesure kg/cm2 1500/1450/1450 1500/1450/1450
Screw speed r.p.m 10-250 10-250
Clamping force tf 80*2 80*2
Min.thickness of mold mm 30 30
Opening stroke mm 168 168
Mold dimension mm 320*310 320*310
Disc diameter mm 1800 2440
Work station 4 6
Power of motor Kw 7.5*2 7.5*2
Power of heating plate kw 2.5/2/2 2.5/2/2
Height of worktable mm 800 800
Machine dimension mm 2400*1870*2610 2400*2510*2610
Machine weight t 4.2 4.8
1.This machine is suitable for injecting all kinds of One / two /three-color,sunch as PVC,TPR etc. for shoelace,baby shoes and other plastic daily necessities.
2.Less consumption,and less pollution.
3.Injecting fast,with strong mold clamping pressure.
4.It can be installed easily,operated easily,without need of skillful operator.
5.Operating the machine is safe and reliable.
