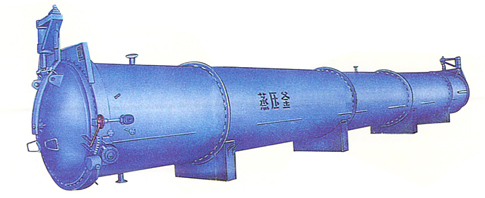

Autoclave

Autoclave is the key equipment in the production of aerated concrete and autoclaved brick. Our autoclave is a principle and cylindrical device made of steel, and has the advantages of good quality and reliable performance.

Purpose of Autoclave
The autoclave is applicable for curing the cut body under high temperature and high pressure, and is also applicable for curing the autoclaved brick under high temperature and high pressure.

Structural Features of Autoclave
Our autoclave is a principle and cylindrical device made of steel, the cover is made of a whole piece of pressed 16 Mn steel board, and the flanges of cover and body adopt a whole piece of forged and processed 16 Mn steel board. The welding lines of pressed components are subjected to heat treatment and strict nondestructive test. The max design pressure reaches 1.65 Mpa.
Specification and Technical Data of Casting Machine：


Specification
（m) Max designed pressure
（Mpa) Working pressure
（Mpa) Designed Temperature
（℃) Working temperature
（℃） Working medium External Dimensin
(m)
Φ2x21 1.1 1.3 198.34 194.13 Saturated steam 22.12*26*2.973
Φ2.1x26

Φ2.85x32

Any inquire are welcome, we are sure we will try our best to serve you best quality equipment and excellent sales-service.
