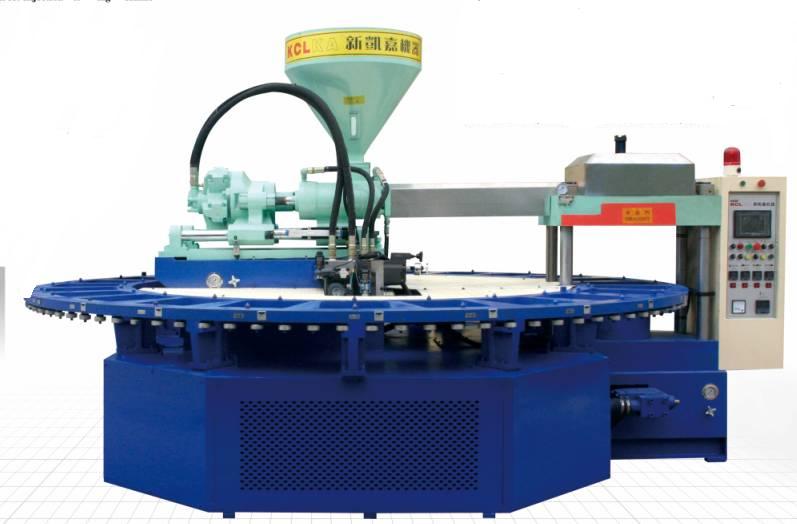

Automatic Rotary PVC Air Blowing Injection Moulding Machine

Feature:
1 most of mechanical movements, covering ranges from injection, feeding, disc-rotating to mould-clamping, could be inputted into PLC, which ensures more accuracy for mechanical movements. 2 equipped with digital-type proportional controller so as to control mould-clamping pressure, injection pressure and feeding pressure. 3 unique mechanical structure, which allows to place big mould in size; at the same time, the machine is fitted with mould cooling device which is easy to operate, producing product more perfectly.4 with the help of blowing system, the machine can have product lightweight, soft and own a polished looking in surface. Besides, the weight can be 20%-30% lower than traditional production way.5 recycled material can be mixed together to produce products, quality of which can be comparable with new product made of purely new material.
Technical Description
Raw material PVC.TPR
Work Stations 24 Stations
Mould-clamping Pressure 70 Tons
Mould space(LxWxH) 600*300*260 Mm
Diameter of Screw 65 Mm
Max. Injection Volume 785 Cm3
Injection Pressure 550 Kg/cm2
Heating bands power 9.64 Kw
Temperature Control Section 4 Sections
Motor   18.5/25   Kw/Hp
Total Electricity Consumption 30.36 kw
Machine dimension 4..5*3.53*2.1 M
Screw length diameter ratio 150-220 L/D
Machine Weight   6.8 Tons
