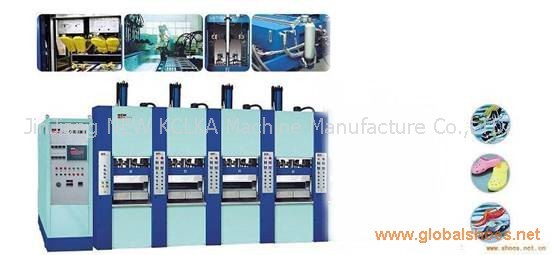

Full-Automatic Foam EVA Injetion Moulding Machine
The foam EVA injection molding machine is fully hydraulic and automatic operation except taking product. It is PLC controlled, its humanized parameter computer operation interface provide quick and exact terms of production. Its product range includes EVA mid-sole, slippers, sport protectors and various kinds of shoe accessories.
1. Low Operation Height
Operation height in accord with human engineering
2. Extra Height Opening Stoke
Act by fixed opening stroke: 350mm, which is not affected by any mould thickness changes and available for 2 plates mould.
3. Mould Thickness Adjusting Mechanism
Mould adjusting scope: 100-200MM
4. Rapid Mould Opening
Act by toggle mechanism which opens the mould rapidly.
5. Speedy Injector Movement
Driven by linear-track, allowing speedy moving and precise positioning.
6. Energy Saving Design
No need water circulation for mould station, using efficient heat insulator material.
7. Space Saving Design
Put oil tank together with injection base, which makes the structure compact and saves more space.
Mould Closing System
Work Stations
4
Clamping Force (kg)
150000
Mould-Opening Stroke (mm)
350
Standard Thickness of Mould (mm)
100-210
Mould Plate Size (mm)
2(290*550)
Height of Injection Nozzle (mm)
60
Method of Heating
electric
Heating Power (kw)
8.04
Injection System
Injectors (set)
2
Diameter of Screw (mm)
60
L/D Ratio of Screw
23
Max Injection Capacity (cc)
860
Injection Pressure
1100
Injection Speed (cm/sec)
10
Rotating Speed of Screw (r.p.m)
0-190
Temperature Control (section)
4
Electricity Consumption
Heater Barrel (kw)
12.1
Motor for Injector Moving (kw)
1.5
Heating Board of Mould (kw)
51.2
Hydraulic System (kw)(50hz)
40.5
Vacuum Pump (kw)
2.2
Cooling Fan of Barrel (HP)
1
Total Electricity (kw)
65
Oil Tank Size (L)
1000
Machine Weight (kg)
16000
Machine Measurement (LxWxH)
4.5x1.7x2.76 m
Output ( Pairs/day)
4000
10000
Note: The clamping force can be increased from 150 to 210 tons, according to your requirement.
The foam eva injection molding machine is fully hydraulic and automatic operation except taking product. It is PLC controlled, its humanized parameter computer operation interface provide quick and exact terms of production. Its product range includes EVA mid-sole, slippers, sport protectors and various kinds of shoe accessories.
