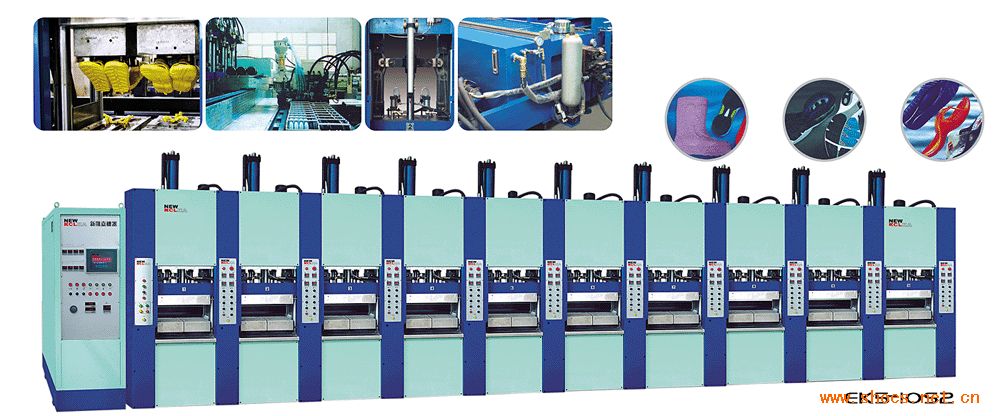

Full-Automatic Foam EVA Injetion Moulding Machine
1.Low Operation Height
Operation height in accord with human engineering
2.Extra Height Opening Stoke
Act by fixed opening stroke:350mm,which is not affected by any mould thickness changes and available for 2 plates mould.
3.Mould Thickness Adjusting Mechanism
Mould adjusting scope:100-200MM
4.Rapid Mould Opening
Act by toggle mechanism which opens the mould rapidly.
5.Speedy Injector Movement
Driven by linear=track,allowing speedy moving and precise positioning.
6.Energy Saving Design
No need water circulation for mould station,using efficient heat insulator material.
7.Space Saving Design
Put oil tank together with injection base,which makes the structure compact and saves more space.
TECHNICAL PARAMETER EK5-I0S2
Work Stations:10 Stations
Clamping Force:150000 kgf
Mould Plate Size:2(290X550) Mm
Mould Height:100-210 Mm
Mould-Opening Stroke:350 Mm
Heating Power:8.04 kw
Injection System
Injector:2
Diameter of Screw:60 Mm
Injection Cap(Max):860Cc
Injection Pressure:60-110 Kg/cm2
Injection Speed:0-10 Cm/sec
Rotating Speed of Screw:0-190r.p.m
Temperature Control:4 section
Electriity Consumption
Heater Barrel:12.1 Kw
Heating Plate:128 Kw
Hydraulic System:40.5 Kw
Vacuum Pump:2.2 Kw
Cooling Fan of Barrel:1HP
Total Electricity:230 Kw
Oil Tank Size:1000 L
Machine Weight:33200 Kg
