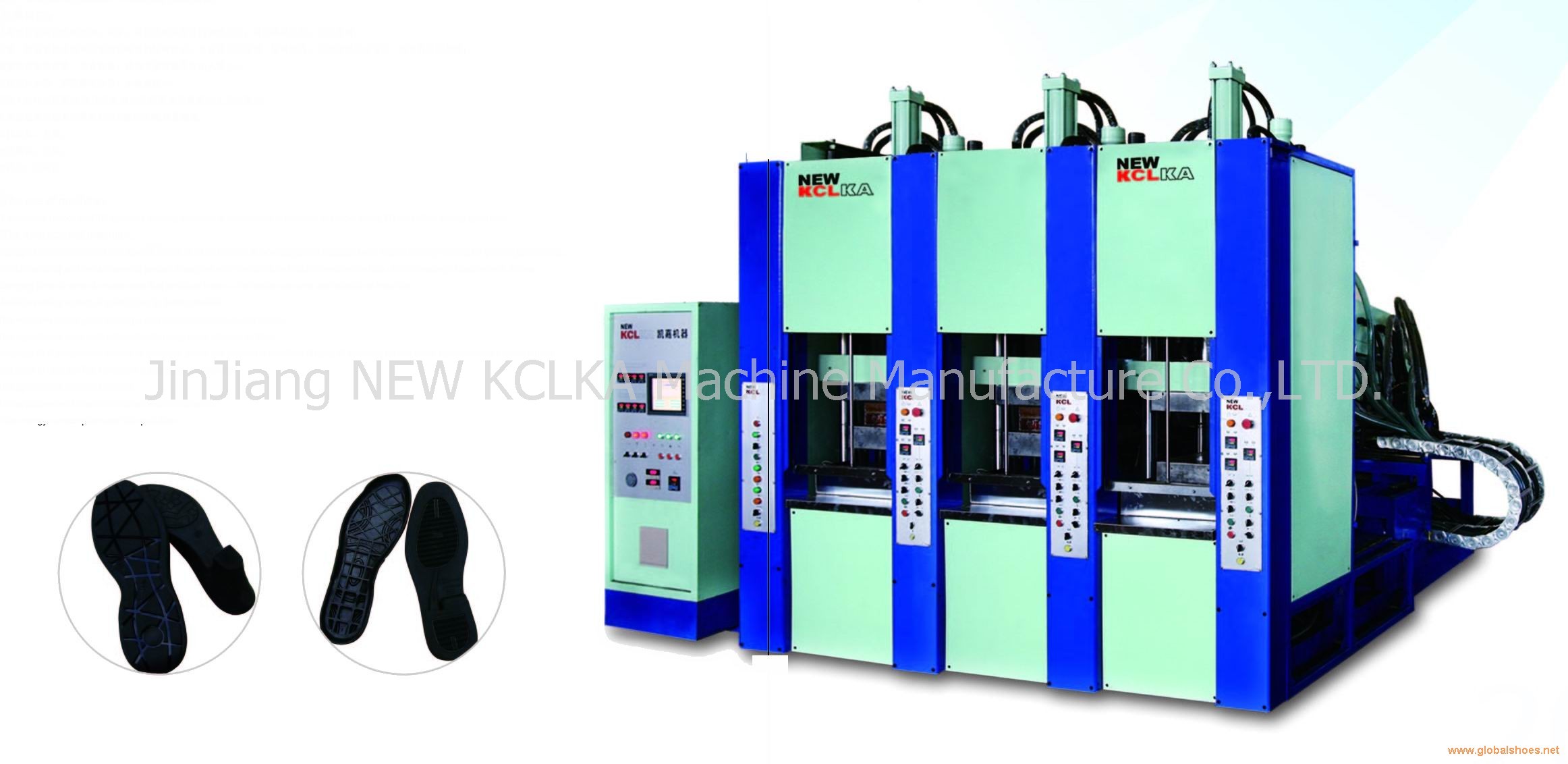

Full Automatic Rubber and TR Injection Molding Machine (3 stations)

Place of Origin: Jinjiang City, Fujian Province, China
ProductModel:EK51-3E1
Brand Name:NEW KCLKA
Payment Terms:L/C,T/T
Payment Terms:USD FOB XIAMEN
Packing:machines will be packed with standard export package
Minimum Order:1 set
Delivery Time:30 days
Supply Ability:30 sets/month
Certificates:ISO 9002 AND CE CERTIFICATE
  • Country/Territory: China (Mainland)
  • Business Type: Manufacturer
  • No. of Total Employees: 101 - 500 People

Detailed Product Description
The character of machine:

1. Equipped with innovational and special structure of machine, for A moving system equipped with import railway moving for precise positioning.

2. Mould clamping and mould opening system equipped with the structure that professional design of our company. Equipped with strong clamping force in order to make sure that products have no deffective one and well outside of machine.

3. Mould reversing system is safety. Easy for taking moulds.

4. The economy design, saving energy and electricty, small vol. and space.

5. The operation is easy with automatic clamping, labor intensity is little.

6. Adopting PLC programme control of industrial grade man-machine interface, display of touching screen, quick speed, correct measurement and easy to operate.

7. The operation is safe and reliable.

8. The appearance of machine is clean and comfortable.

9. Little energy consumption and little pollution.

MACHINE SPECIFICATION    EK51-3E1


Stations    3


No.of screw and barrel (barrel)    1


Diameter of Screw (mm)    60


Injection Pressure    1100


Injection Speed (g/s)    0-200


Speed of Screw (r/min)   0-120


Clamping Force (kn)    1500


Max. space of mould (mm)      2*290*550


Heating Power (kw)    24.8

Power of motor (kw)    18.5

Pump pressure (Mpa)    21

Machine Size (LXWXH)    300*450*25

Machine Weight (tons)    12

Power of mould plate for single       station (kw)       6

Power of injector for single    station (kw)      2
