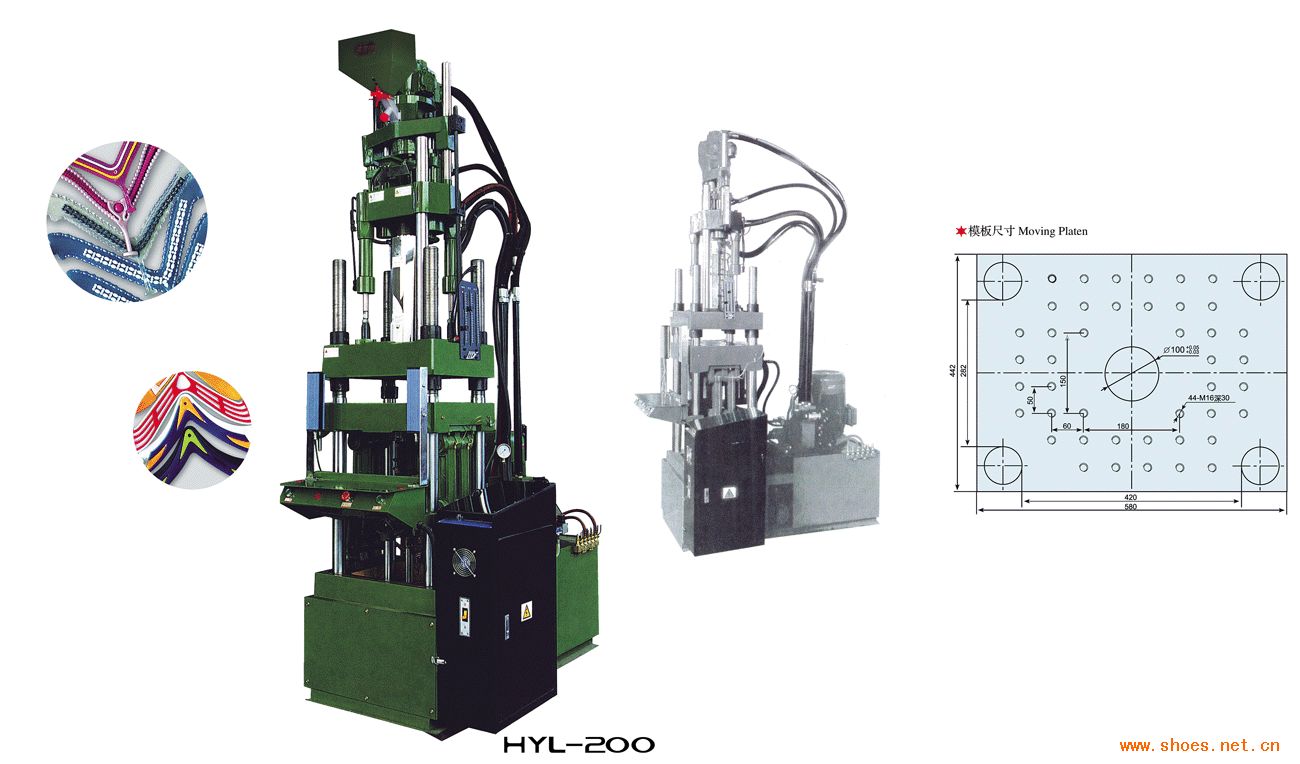

AUTOMATIC ROTARY PLASTIC SHOE DIRECT INJECTION MOULDING MACHINE HYL-200
Characteristic
1.Computer numerial control
2.Hydraulic ratio control
3.Five-reaming mechanism locked mould
4.Dual-cylinder balanced type injection system
5.Adjustable injection bace pressure
6.Optimized composition of famous brand hydraulic part
7.Hydraulic ejector
8.Electric eye safety device
TECHNICAL PARAMETER HYL-200
Item
Injection unit
Machine Moder:standard
Screw Diametor:46 Mm
Injection Pressure:133 Mpa
Theoretical shot volume :280 CM3
Shot weight(ps):225 G
Inetion pate(PS):155 g/s
Scres Speed:6-300 r/min
Glamping unit
Glamping Model
Glamping Porce:1000 KN
Maxmould plate Stroke:300 Mm
Mould Thickness:150-400 Mm
Space Between the bars:420*282Mm
Mould plate size:580*442 Mm
Ejector force/stroke :45/80 Kn/mm
Others
Motor power:11 Kw
Heating power :7.5 Kw
Machine Weigh:23 Tons
Machine size:1.72*0.93*2.77 M
