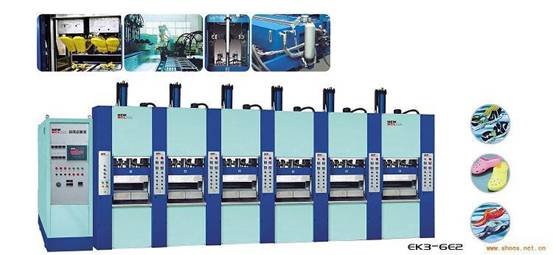

Foam EVA Injection Moulding Machine(6 stations)

TECHNICAL PARAMETER OF EK3-6E2

Work Stations:         6 Stations

Clamping Force:       150000 kgf

Mould Plate Size:       2(290X550) Mm

Mould Height:             100-210 Mm

Mould-Opening Stroke:       350 Mm

Heating Power :                8.04 kw

Injection System

Injector:    2

Diameter of Screw:      60 Mm

Injection Cap(Max):       860 Cc

Injection Pressure:          60-110 Kg/cm2

Injection Speed:               0-10 Cm/sec

Rotating Speed of Screw:       0-190r.p.m

Temperature Control:    4 sections

Electriity Consumption

Heater Barrel:       12.1 Kw

Heating Plate:       76.8 Kw

Hydraulic System:      40.5 Kw

Vacuum Pump :       2.2 Kw

Cooling Fan of Barrel:    1HP

Total Electricity:       150 Kw

Oil Tank Size:          1000L

Machine Weight:       23800 Kg

DESCRIBTION:
1.Low Operation Height
   Operation height in accord with human engineering
2.Extra Height Opening Stoke
   Act by fixed opening stroke:350mm,which is not affected by any mould thickness changes and available for 2 plates mould.
3.Mould Thickness Adjusting Mechanism
   Mould adjusting scope:100-200MM
4.Rapid Mould Opening
   Act by toggle mechanism which opens the mould rapidly.
5.Speedy Injector Movement
    Driven by linea-track,allowing speedy moving and precise positioning.
6.Energy Saving Design
    No need water circulation for mould station,using efficient heat insulator material.
7.Space Saving Design
    Put oil tank together with injection base,which makes the structure compact and saves more space.

Note: The clamping force can be increased from150 to 210 tons.

The foam EVA injectionmolding machine is fully hydraulic and automatic operation except takingproduct. It is PLC controlled, its humanized parameter computer operationinterface provide quick and exact terms of production. Its product range includesEVA mid-sole, slippers, sport protectors and various kinds of shoe accessories.
