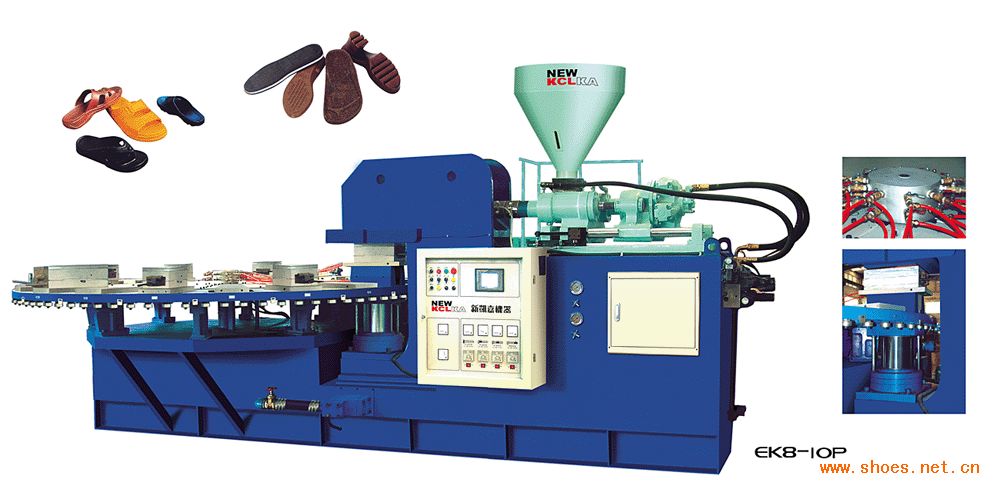

Technical Description:
Raw material: PVC.TPR
Work Stations: 24Stations
Mould-clamping Pressure: 70000Kg
Space to hold mould: 400*200*220 / 600*280*230Mm (LxWxH)
Diameter of Screw: 60Mm
Max. Injection Volume: 758 / 785Cm3
Injection Pressure: 550Kg/cm2
Diameter of Disc: 3.60m
Temperature Control Section: 4Sections
Electric Heating Energy ofMaterial tube: 8.78 / 9.18Kw
Motor: 18.5/25Kw/Hp
Total ElectricityConsumption: 29kw
Machine Size: 5500*2980*2000 / 6200*3530*2300Mm
Output: 2500Pairs/day
Machine Weight: 6800 or 8800kg
Feature:
1 most of mechanical movements, coveringranges from injection, feeding, disc-rotating to mould-clamping, could beinputted into PLC, which ensures more accuracy for mechanical movements.
2 equipped with digital-type proportional controller so as to controlmould-clamping pressure, injection pressure and feeding pressure.
3 unique mechanical structure, which allows to place big mould in size; at thesame time, the machine is fitted with mould cooling device which is easy tooperate, producing product more perfectly.
4 with the help of blowing system, the machine can have product lightweight,soft and own a polished looking in surface. Besides, the weight can be 20%-30%lower than traditional production way.
5 recycled material can be mixed together to produce products, quality of whichcan be comparable with new product made of purely new material.
