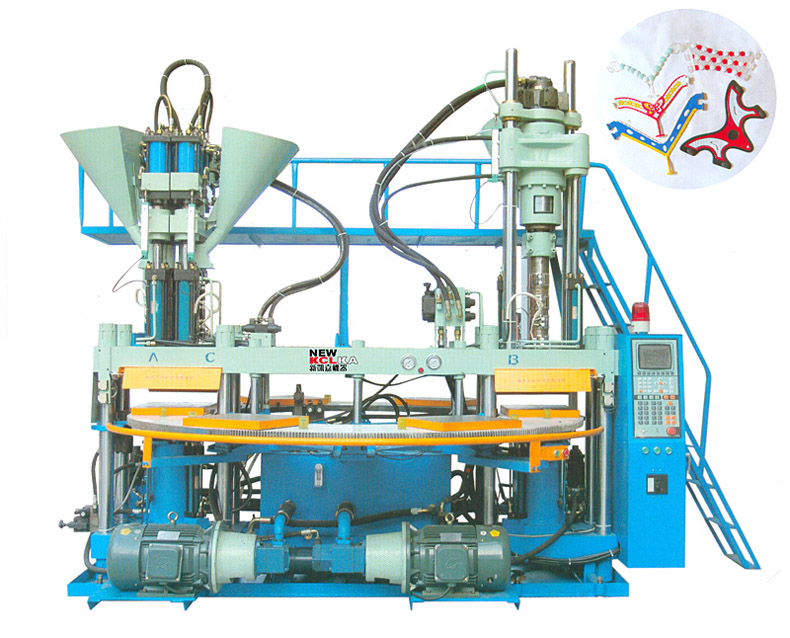

Three-color injection molding machine

TechnicalDescription

This machine is suitable for all kinds of thermoplasticmaterials, foaming or non-foaming, such as PVC and TPR soles, sandals or plastic footwear.

Number of station:      6 Stations

Screw diameter:       50/40Mm

Injection Volume (Max):    314/190Cm3

Injection Pressure:       1350/1500Kg/Cm2

Rotating speed of Screw:    10-250RPM

Clamplng force:      80 X2Tons

Mould Thickness(Min):    30Mm

Mould opening stoke:    210Mm

Standard Mould size:    320X 310Mm

Diameter of Disc:      240Mm

Output:       10000Pairs/day

Electric motor power:      7.5 X2Kw

Heating power:      4 X3Kw

Workable height:    890Mm

Measurement(L.W.H):    2700 X2600 X29Mm

Weight:    5.5Tons

The machine is computer numerical control, driven byHydraulic Motor, full hydraulic pressure. Hydraulic system is controlled byproportional valve. The import hydraulic parts are optimized in composition, nooil leak.Practical design, large production, low energyconsuming, high degree of automatization.
