I.Feature:

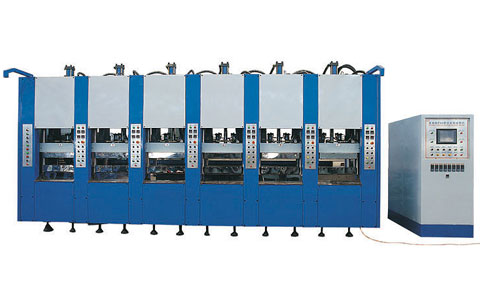

The machine is equipped with two full automatic and high-efficiency injectors, combined with high performance mould clamping system and PC control system. By using EVA as the raw material, the machine can produce midsole, sole and various kinds of EVA foaming products flexibly.
1 Injection system
The measuring mechanism, which adopts potentiometer detection, along with PLC and PC, can compute and control material entering precisely.
With the introduction of the worm gear decelerator, coordinated with the brake motor, the two injectors run at a high speed under the control of converter. Orientation is of high accuracy.
2 Mould clamping system
The two-step speedy mould opening/clamping mechanism with detection device of full mould opening.
Enlargening mould design size can be consistent with varied moulds flexiblely at a high compatibility.
3 Computer-control system
The PLC control module works through a graphic display interface to show all monitoring information and setting conditions: material input amount, injection temperature, mould temperature, operation time, output, mould data, etc. all operation processess can be controlled and performed on the touch screen, besides, the operation instructions are easy to be learned. Thanks to the man-machine interface, maintainance and malfunction detection could be easily learned, which will save maintaince time.
Multistage code control can be set according to different management hierarchies from operators, maintainance men to managers to avoid man-made negligence but so as to keep production information safe.
4 Hydraulic system (Oil pressure system)
By adopting proportional controlling valve, also with the support of computer control system, the hydraulic system can accurately keep control of the flow of multistage pressue and speed.
pumps, designed independently, are used to keep down noise but increase efficiency.
