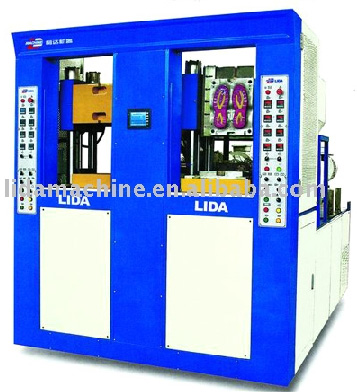

LD-T-2S4 Vertical Multi-colour Thermoplastic Molding Machine
(Applicable to make TR or TPU unit soles in multi-colour through Injecton or Extrusion System)
I. Feature:
Mold Carrier System
1 Different mold thickness can be automatically adjusted by hydraulic clamping system.
2 Three-position mold rotating system can provide many different production ways for you. It can be applied to produce one-clour soles, two-colour soles, and also two-colour soles of three layers etc.
3 Precise and quick mold positioning provided by Unique rotating positioning mechanism.
4 Great functions of both upper ejecting and bottom ejecting, make soles much easier to be taken out and kept products in original shape.
5 Mold Sliding Fuction makes it easier for workers to pick products out and insert decorations parts into the molds.
6 Independent Cooling System for molds and products. So less time is required and higher productivity you will get.
7 Independent Blowing System for molds and mold plate makes it easier to separate the products and sprue leavings from the molds.
Feeding System
1 Providing Injection or Extrusion System options for your choice.
2 An Electric Motor is used to adjust the height of injection point, so more sizes of molds can be used in the machine.
3 Adjustment of injection point with horizontal leveling, no material piles at the channel of extruder, so the course of changing material is more material-saving and swift.
4 Barrel temperature accurately controlled by P.I.D. control system.
5 Each extruder has an independent nozzel. Different material flows without interfer, and colours not mingled. So the clours are clear and more favorable.
Electric Control System
1 With Self-diagnosis Analysis System. The current running status of the machine can be acknowlegded at any moment. As good as a weather forecast system to you.
2 With Working File Recording System. Processing parameters of different molds can be saved with individual files, and that can boost a higher productivity.
