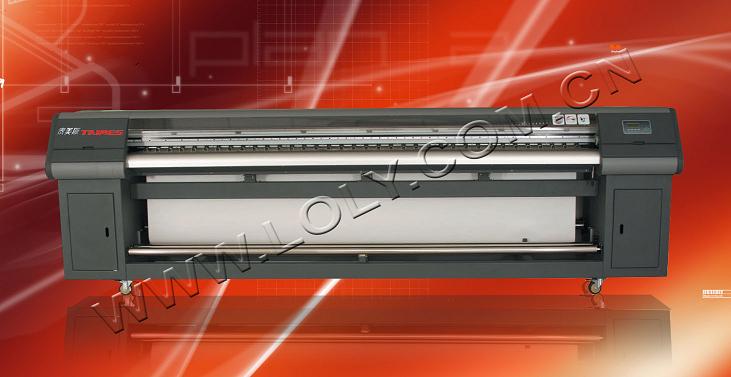

TAIMES 3206H SOLVENT PRINTER

Place of Origin: China
ProductModel:TAIMES 3206H
Brand Name:TAIMES
Payment Terms:T/T
Payment Terms:
  • Country/Territory: China (Mainland)
  • Business Type: Manufacturer
  • No. of Total Employees:

Detailed Product Description
TAIMES 3206H SOLVENT PRINTER

Product Model:    TAIMES 3206H SOLVENT PRINTER

Printhead:   SPT510-35PL

Number of Printhead:    6 Heads

Maximum Print Width:    3200mm

                   Print Mode             Standard Output (m2 /h)
                240x540dpi 3pass                48.19

                240x720dpi 4pass                37.12

                240x540dpi 6pass                25.63

                360x540dpi   3pass               35.73

                360x720dpi   4pass               26.80

                360x540dpi   6pass               18.46

                360x720dpi   8pass               14.04
Ink

Type :      Solvent Ink / ECO-Solvent Ink

Color :    6 Colors( C , M , Y , K , Lc , Lm )

Capacity :   5L Per Main Tank of Each Color

Ink Supply System :    Low Ink Detector, Auto or Manual Ink Supply System


Media

Width :    3300mm

Type :    Vinyl,Flex,Polyester,Back-lit Film, Window Film,etc

Auto Media Feeding System:      Equipped ( Max. Media Weight 80kg )

Auto Cleaning System:      Positive Pressure Cleaning; Anti-clogged Flash Function &
                            Capping System

Pre-heating & Drying System:    Equipped

Clamp:    Equipped

Print Interface:   USB2.0

Printhead Height: 2 to 4 mm Above Media Adjustable

RIP Software:   Maintop , UltraPrint , PhotoPrint , Topaz , Wasatch , Caldera

Input Power:    AC 220V ,50Hz/60Hz

Machine Dimension:    L4,300 x W800 x H1,160 mm    Net Weight : 340Kg

Package Dimension:    L4,500 x W1,100 x H900 mm    Gross Weight : 420Kg

Operation Environment:    Temperature: 20~28   o C    Humidity: 40%~60%


Advance Technic:

* Original Japanese drop on demand piezo print head with steel plate protected, 255 active nozzles

* 6 color plus 720dpi makes unmatchable color and high resolution.

* The voltage of the print head, automatically adjustable to the temperature, prevents blockage caused by the change of temperature.

* The function of skipping white space is added to increase productivity.

* The adjustment of bi-direction, step and carriage moving speed can be made during printing.

* Edge feather function can blur the pass line and feather the pass edge.

* Delicately designed alloy-aluminum platform.
