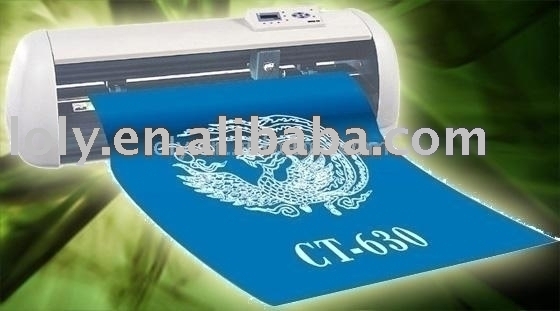

Vinyl plotter CT-630

Place of Origin: China
Brand Name:PCUT
Payment Terms:T/T
Payment Terms:
  • Country/Territory: China (Mainland)
  • Business Type: Manufacturer
  • No. of Total Employees:

Detailed Product Description
Vinyl plotter CT-630

1. The appearance design of the patent, streamlined fuselage, carry the putting type control panel, easy to operate, elegant appearance. The keyboard is more durable than the old model.

2. Adopting the new microstep to subdivide algorithms, being in highly cutting quality while cutting at a high speed, the curve is smooth and more evasive.

Vinyl plotter CT-630 Features

-The 630mm PCUT CT-630 vinyl sign cutter combines sleek design with exceptional performance. With bundled graphic design software the 630mm PCUT CT-630 is definitely a sign maker's choice.

-Standard features include a repeat function, which enables the operator to repeat multiple jobs without having to download from the computer all the time.

-A user-friendly display allows the operator to quickly set the parameters of the cutter. The origin is easily set to save material. The test cut facility allows the operator to set the knife pressure prior to cutting.

-Support USB interface.

-One ahead program, more fast and smoothly.

Vinyl Cutter CT-630 Parameters:

Type:   CT-630

Paper Feeding mode:   M form bracket

Controller:    16 bit CPU, 1MB High-speed CACHE memory

Control panel:   Over-head, 2x8 L C D, 13-button touch thin-film keyboard

Driver:    High stepping motor, micro-step driver

Maximum paper Feed width:   730mm

Max cutting width:       625mm

Max cutting speed:       400mm/s

   Max cutting thickness:    1mm

   Mechanism precision:   0.1mm

Repeatable precision:   +-0.1mm

Type of tool:      Carbide blade

Type of plot pen:    All types Diameter 11.4mm plotter pen

Plotting instruction:   DM-PL HP/GL automatic identification

Interface:    Standard RS232 (serial)/USB1.0

    Power consumption: 100VA

   External size:      1030x275x380mm

Transporting weight:   27kg
