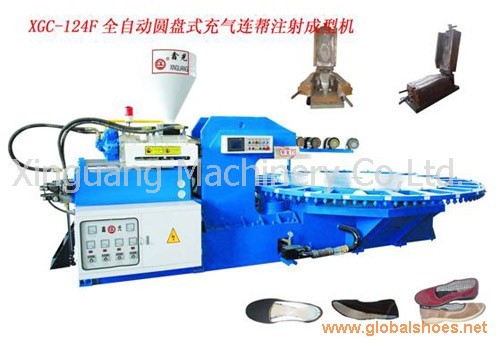

Automatic injection molding shoe machine

Technical Parameters:
Model: XGC-124C Quantity of Mould: 24 (Station)
Hourly Output: 150-220 (pair) Screw Diameter: 55/65mm
Injection Capacity: 500/680 cm3 Injection Pressure: 100 MPa
Mould Clamping Force: 50 T Size of Mould: 400*250*230mm
Motor: 22Kw/Hp Temperature Control: 4 Sets
Heating Power: 9.4 Kw Total Power: 29.4 Kw
Machine Dimension: 5.8*3.52*2.5m Machine Weight: 8.8T
Main Features:
1) This machine is specially designed to produce various kinds of single color soles, slippers, sandals, half boots, especially all-plastic sneakers and casual shoes.
2) Suitable for various foamed or unfoamed plastic materials, such as PVC, TPR, etc.
3) Adopts computer PLC combined with human-computer touch interface, realizing automatic control and free man-manchine interaction. Designed according to human engineering, this machine is easy to operate and has high affinity.
4) Perfect match between the fuel tube and electrical control saves time and increases production speed, which in turn promotes output and creates more profits.
5) The C-structure design enhances the cooling system, which is especially suitable for those who need to strengthen the cooling effect.
6) Equiped with air injection device, making the products soft, light and smooth.
7) Different moulds can be produced simultaneously at the 24 stations. Parameters like material quantity, injection pressure, time can be set separately at each station to produce various products.
8) Turn table with large outside diameter lengthens cooling time without affecting the efficiency.
9) The design of integral structure guarantees the firmness of the machine and greatly prolongs its duration.
10) The special design of the machine makes it suitable for all kinds of moulds.
