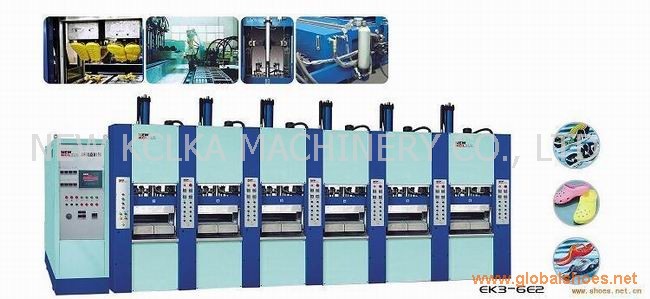

This unit is specialized in making all kinds of EVA shoes.
Technical Description
Mould Closing System
Work Stations 6
Clamping Force (kg) 150000
Mould-Opening Stroke (mm) 350
Standard Thickness of Mould (mm) 100-210
Mould Plate Size (mm) 2(290*550)
Height of Injection Nozzle (mm) 60
Method of Heating electric
Heating Power (kw) 8.04
Injection System
Injectors (set) 2
Diameter of Screw (mm) 60
L/D Ratio of Screw 23
Max Injection Capacity (cc) 860
Injection Pressure 1100
Injection Speed (cm/sec) 10
Rotating Speed of Screw (r.p.m) 0-190
Temperature Control (section) 4
Electricity Consumption
Heater Barrel (kw) 12.1
Motor for Injector Moving (kw) 1.5
Heating Board of Mould (kw) 76.8
Hydraulic System (kw)(50hz) 40.5
Vacuum Pump (kw) 2.2
Cooling Fan of Barrel (HP) 1
Total Electricity (kw) 160
Oil Tank Size (L) 1000
Machine Weight (kg) 23800
Output ( Pairs/day) 10000 10000
Note: The clamping force can be increased from 150 to 210 tons, according to your requirement.
The foam eva injection molding machine is fully hydraulic and automatic operation except taking product. It is PLC controlled, its humanized parameter computer operation interface provide quick and exact terms of production. Its product range includes EVA mid-sole, slippers, sport protectors and various kinds of shoe accessories.
