Technical Description
Mould Closing System
Work Stations 10
Clamping Force (kg) 150000
Mould-Opening Stroke (mm) 350
Standard Thickness of Mould (mm) 100-210
Mould Plate Size (mm) 2(290*550)
Height of Injection Nozzle (mm) 60
Method of Heating electric
Heating Power (kw) 8.04
Injection System
Injectors (set) 2
Diameter of Screw (mm) 60
L/D Ratio of Screw 23
Max Injection Capacity (cc) 860
Injection Pressure 1100
Injection Speed (cm/sec) 10
Rotating Speed of Screw (r.p.m) 0-190
Temperature Control (section) 4
Electricity Consumption
Heater Barrel (kw) 12.1
Motor for Injector Moving (kw) 1.5
Heating Board of Mould (kw) 128
Hydraulic System (kw)(50hz) 59
Vacuum Pump (kw) 2.2
Cooling Fan of Barrel (HP) 1
Total Electricity (kw) 200
Oil Tank Size (L) 1000
Machine Weight (kg) 33200
Note:
1.Its product range includes EVA mid-sole, slippers,sandals, clogs,sport protectors and various kinds of shoes and shoe accessories and depends on the EVA shoe mould.
2.The clamping force can be increased from 150 to 210 tons, according to your requirement.

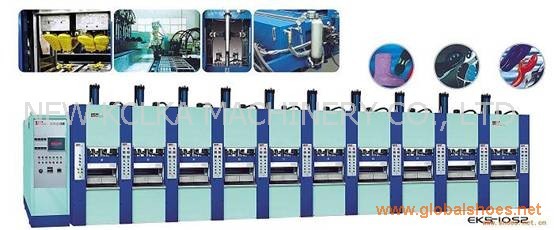

3.The foam EVA injection molding machine is fully hydraulic and automatic operation except taking out product.
4.It is PLC controlled, its humanized parameter computer operation interface provide quick and exact terms of production.
