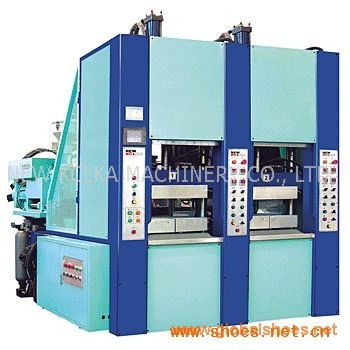

FULL-AUTOMATIC FOAM EVA INJECTION MOULDING MACHINE
for making all kinds of EVA shoes
Work Stations stations 2
Clamping Force kgf 150000
Mould PlateSize mm 2(290X550)
Mould Height mm 100-210
Mould-Opening Stroke mm 350
Heating Power kw 8.04
Injection System
Injector 1
Diameter of Screw mm 60
Injection Cap (Max) cc 860
Injection Pressure kg/cm2 60-110
Injection Speed cm/sec 0-10
Rotating Speed of Screw r.p.m 0-190
Temperature Control section 4
Heater Barrel kw 6.05
Heating Plate kw 25.6
Hydraulic System kw 22
Vacuum Pump kw 2.2
Cooling Fan of Barrel HP 1
Total Electricity kw 55
Oil Tank Size L 500
Machine Weight kg 8000
Specifications are subject to change request without notice for improvement.
