Item Unit
Raw material PVC.TPR.TPU
Work Stations Stations 24
Mould-clamping Pressure Tons 70
Mould space(LxWxH) Mm 600*300*280
Diameter of Screw Mm 60*2
Max. Injection Volume Cm3 650
Injection Pressure Kg/cm2 550
Heating bands power Kw 9.64
Temperature Control Section Sections 4*2
Motor Kw/Hp 18.5*2
Total Electricity Consumption kw 58.6
Machine dimension
M 8.25*4.65*2.28
Screw length diameter ratio L/D 120-185
Machine Weight Tons 12
Above is technical parameters of this series.
Feature:

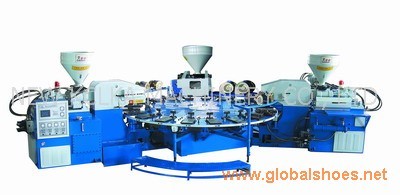

1. EK15-212P SERIES are specialized in manufacture of various kinds of double color soles,slipper sandals ,boots.It is particular effctive to the making of all-plastic sport ,leisure shoe,ect.
2. This unit is suitable for all kinds of thermoplastic raw materials ,foaming or non-foaming,such as PVC ,TPR,TPU ect .
3. conformed to human engineering in design,it features operational compatibility.
4. The well interconnected oil circuit by electric control can reduce waitting time .quicken production rate,and promote productivity.
5. It could be equipped with air blowing system can product light weight,soft with gloss surface and high value products.
6. Number of various stations may be optionally chosen for small quantity but greater in variety ,or mass production.
