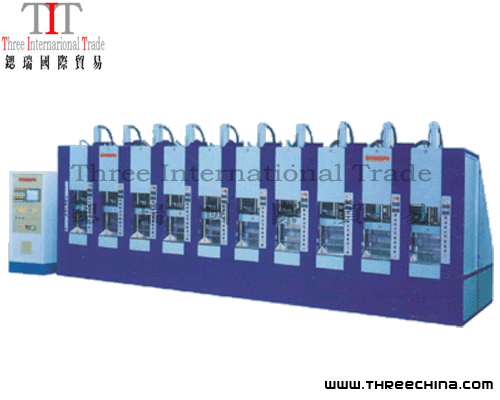

EVA foam injection moulding machine

The machine is equipped with two high efficiency injectors .coordinates with
high Clamping force system and PC control system ,.which is flexible to use
EVA compound for producing expanded insole slipper and various kinds of
EVA foaming products
1 Injection System
   The measuring mechanism can use potentiometer to check and control the material
quantity precisely.
   The speedy injector movement is driven by linear-track and worm gear decelerator
coordinating with brake motor. The speedy movement is controlled by transducer.
2 Mould Clamping System
   Equipped with hydraulic cushion equipment.it allows 2mm thickness difference
between 2 moulds on one Mould station. It save mould correcting time. Adopt effcient
vacuum system and fixed mould stroke 320mm.
3 PC Control System
   Utilized touch-type screen to display injection volume, injection time, injection
temperature ,mould temperature , movement time and productivity online, easy to learn
and operate. Equipped with PLC modular system ,every function structure is clear .
4 Hydraulic System
   Adopted proportional valve to coordinate the computer system, allowing precisly control
of the pressure and flow rate.
Precisely control the pressure and flow rate by usig proportion valve and computer
system.
5 Accessories
   Operating position is equipped with pneumatic circulation system.
   Equipped with automatic lubrication system.
   Equipped with padding system.
